A.C.T. (USA) INT'L Corporation
presents

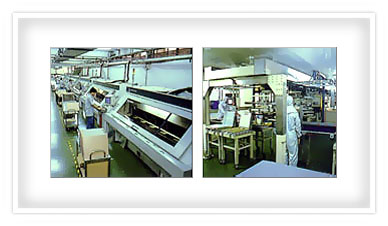

Gia Tzoong Enterprise Co. Ltd.
Taiwan


Established in 1983, Gia Tzoong occupies a 120,000 square foot facility, and has capacity to produce 300,000 square feet of double sided and multi-layer PCB's per month with 350 employees.
CAPABILITIES - Double Sided PCB's


  • 2 -10 layer PCB's
  • FR4, Getek & Rogers
  • SMOBC, HASL or Entek
  • LPI Solder Masks
  • Immersion Gold/Tin
  • CNC V-Scoring
  • Electrical Test, Opens and Shorts, & Impedance Control
  • Min Line Width & Space .004" /.004"
  • .004" Min Dielectric
  • .020" (6 lyr) to .093" Thk
  • Min Hole Size .010"
  • Hole Location Tolerance +/-.003
  • Carbon Ink
  • Peelable Mask & Inks
  • Automatic Hole Counting Equipment
  • Quick Turn Capability
  • Quick Turn Capability
  • UL Number: El 1 7098
  • Member of IPC
Miscellaneous

  • 1999 Sales $40 Million
  • CAD/CAM House for direct modem of Gerber Data
  • Customers: Twinhead Computer, APCC, Rockwell, Schlumberger, Eltech, USI, Dovatron, Display Technology, IEE, Equinox

Gia Tzoong is capable of producing two, four and six layer printed circuit boards of very high quality. Gia Tzoong is a public company, with stocks being traded on the Taiwan Stock Exchange.
The company has been ISO 9002 approved since 1996 and achieved QS 9000 approval in 1999. Gia Tzoong is continually upgrading equipment to give them greater output and higher technical capabilities.






A.C.T. (USA) INT'L Corporation
presents
Hsiang Kuo Industrial Co.
China


Established in 1987, Hsiang Kuo has a facility totaling 110,000 square meters in mainland China. They can output 30,000 square meters of Double Sided and 100,000 square meters of Single Sided Boards per month.
CAPABILITIES - Double Sided PCB's - Single Sided PCB's


  • Material: CEM-1 , CEM-3, FR-1 , FR-2, FR-4, etc.
  • LPI & UV Solder Mask
  • Hole drilling or punching
  • CNC V-Scoring
  • Electrical Test for opens and shorts
  • Min Hole, punch .035"
  • Min Hole, drill .018"
  • Hole Location Tolerance +/- .00311 of TP
  • Min Line Width & Space .020" /.020"
  • Min SMD Pitch .020"
  • Thickness: .031 " to .093"
  • Hard Tooling 10/12 days
  • Carbon Ink
  • Hot Air Solder Leveling
  • Board Flatness Tolerance: 7%
  • UL Number El 16921
Hsiang Kuo is a UL and ISO 9002 certified supplier. Their employment force is approximately 700 dedicated, well trained people. The facilities are clean, modern and well maintained.

Probe Test Equipment

Entek Line

CNC Routing


Attention to Quality has been the key driving force that has lead to their success. They are continually upgrading equipment to give them greater efficiency and throughput. All processing is done in house so as to allow greater control of quality and scheduling.




A.C.T. (USA) INT'L Corporation
presents

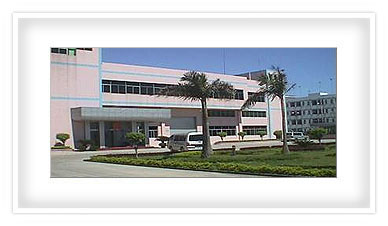

COUNTCASH Limited
China


COUNTCASH Limited was established in 1988 Hong Kong, with a facility in China established 2001. Production Capacity of 1,600,000sq.ft. Single sided and Multi-Layers Double sided 250,000sq.ft. per month. With approx. 830 dedicated employees.
Capabilities - Multi-layer PCB's - Double sided PCB's - Single sided PCB's

  • Materials FR-1,2,3 ,Cem-1 and Cem-3
  • Solder mask LPI and UVElectrical Test opens,shorts
  • Minimum Line and space .007/.007
  • Hole minimum size .017
  • Hole location tolerance .005
  • Punch and Punch push back

COUNTCASH Limited is UL, ISO9002, QS9000 certified supplier.


Major Customers

  • Sony
  • Toshiba
  • Sharp
  • Chiyoda
  • NEC
  • NIDEC
  • LG
  • Samsung
  • Delta
  • Sampo
  • Alco
  • Orient
  • Starlight


Automatic DF Lamination and Development

Automatic Etch System

Automatic LPI Soldermask Coat Print and Development

Drill

OS Test

Back of Building
